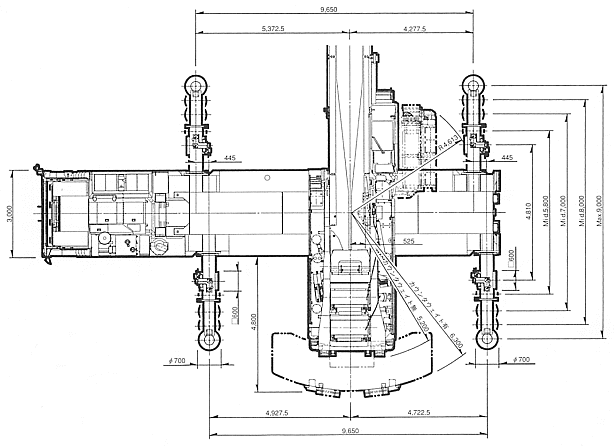

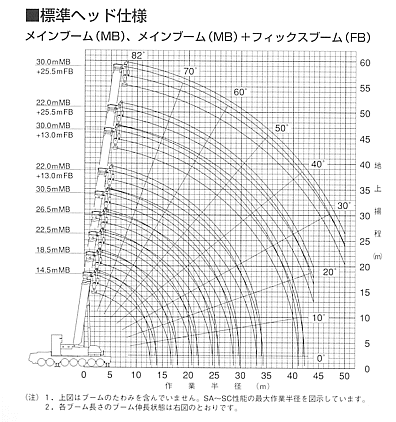

| 標準ヘッド定格総荷重表 SA性能（ｶｳﾝﾀｰｳｴｲﾄ１９５ｔ） 単位：ｔ | |||||||||||||||
| ﾒｲﾝﾌﾞｰﾑ（MB）、ﾒｲﾝﾌﾞｰﾑ（MB）＋ﾌｨｯｸｽﾌﾞｰﾑ（FB） | |||||||||||||||
| MB長さ(m) | 14.5 | 18.5 | 22.5 | 26.5 | 30.5 | 14.0 | 18.0 | 22.0 | 26.0 | 30.0 | 14.0 | 18.0 | 22.0 | 26.0 | 30.0 |
| FB長さ(m) | - | - | - | - | - | 13.0 | 13.0 | 13.0 | 13.0 | 13.0 | 25.5 | 25.5 | 25.5 | 25.5 | 25.5 |
| 合計長さ(m) | 14.5 | 18.5 | 22.5 | 26.5 | 30.5 | 27.0 | 31.0 | 35.0 | 39.0 | 43.0 | 39.5 | 43.5 | 47.5 | 51.5 | 55.5 |
| 作業半径(m) | |||||||||||||||
| 4.5 | 170.0 | 170.0 | 170.0 | . | . | . | . | . | . | . | . | . | . | . | . |
| 5.0 | 170.0 | 170.0 | 170.0 | 170.0 | . | 170.0 | . | . | . | . | . | . | . | . | . |
| 6.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | . | . | . | . | . | . | . | . |
| 7.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 140.0 | . | . | . | . | . | . |
| 8.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 140.0 | 140.0 | 113.0 | 113.0 | . | . | . |
| 9.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 140.0 | 140.0 | 113.0 | 113.0 | 113.0 | . | . |
| 10.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 140.0 | 140.0 | 113.0 | 113.0 | 113.0 | 113.0 | . |
| 11.0 | 170.0 | 170.0 | 170.0 | 170.0 | 170.0 | 166.0 | 170.0 | 166.0 | 140.0 | 140.0 | 113.0 | 113.0 | 113.0 | 113.0 | 113.0 |
| 12.0 | 146.0 | 164.0 | 163.0 | 162.0 | 159.0 | 153.0 | 158.0 | 154.0 | 140.0 | 140.0 | 111.0 | 113.0 | 113.0 | 113.0 | 113.0 |
| 14.0 | . | 138.0 | 138.0 | 139.0 | 139.0 | 133.0 | 138.0 | 134.0 | 132.0 | 130.0 | 95.9 | 105.0 | 112.0 | 109.0 | 111.0 |
| 16.0 | . | 102.0 | 119.0 | 120.0 | 120.0 | 117.0 | 120.0 | 118.0 | 117.0 | 115.0 | 83.5 | 91.9 | 99.1 | 96.9 | 99.1 |
| 18.0 | . | . | 102.0 | 105.0 | 105.0 | 104.0 | 105.0 | 103.0 | 104.0 | 102.0 | 73.8 | 81.4 | 88.0 | 86.4 | 88.7 |
| 20.0 | . | . | 75.3 | 92.5 | 93.1 | 94.5 | 93.5 | 91.9 | 91.9 | 91.8 | 65.8 | 72.8 | 79.0 | 77.9 | 80.1 |
| 22.0 | . | . | . | 80.7 | 82.8 | 84.3 | 83.5 | 81.8 | 81.9 | 81.7 | 59.2 | 65.7 | 71.5 | 70.7 | 72.8 |
| 24.0 | . | . | . | 58.9 | 74.2 | 66.2 | 75.2 | 73.5 | 73.5 | 73.3 | 53.7 | 59.7 | 65.1 | 64.5 | 66.5 |
| 26.0 | . | . | . | . | 65.4 | . | 65.8 | 66.4 | 66.4 | 66.2 | 48.9 | 54.5 | 59.7 | 59.3 | 61.1 |
| 28.0 | . | . | . | . | 47.8 | . | 51.0 | 60.4 | 60.3 | 60.1 | 44.9 | 50.1 | 55.0 | 54.7 | 56.4 |
| 30.0 | . | . | . | . | . | . | . | 52.1 | 55.0 | 54.7 | 41.3 | 46.3 | 50.9 | 50.7 | 51.9 |
| 32.0 | . | . | . | . | . | . | . | 39.8 | 50.3 | 50.0 | 38.2 | 42.9 | 47.3 | 47.1 | 47.2 |
| 34.0 | . | . | . | . | . | . | . | . | 42.9 | 45.8 | 35.5 | 39.9 | 44.1 | 43.5 | 43.0 |
| 36.0 | . | . | . | . | . | . | . | . | 32.4 | 42.0 | 33.1 | 37.2 | 40.1 | 39.8 | 39.2 |
| 38.0 | . | . | . | . | . | . | . | . | . | 35.6 | . | 34.9 | 37.1 | 36.5 | 35.9 |
| 40.0 | . | . | . | . | . | . | . | . | . | 26.6 | . | 27.7 | 33.3 | 33.5 | 32.8 |
| 42.0 | . | . | . | . | . | . | . | . | . | . | . | . | 28.1 | 30.6 | 29.9 |
| 44.0 | . | . | . | . | . | . | . | . | . | . | . | . | 21.2 | 27.2 | 27.4 |
| 46.0 | . | . | . | . | . | . | . | . | . | . | . | . | . | 22.7 | 25.1 |
| 48.0 | . | . | . | . | . | . | . | . | . | . | . | . | . | 16.6 | 22.1 |
| 50.0 | . | . | . | . | . | . | . | . | . | . | . | . | . | . | 18.2 |
| 角度 | 0〜72 | 0〜77 | 0〜80 | 0〜82 | 0〜82 | 0〜80 | 0〜82 | 0〜82 | 0〜82 | 0〜82 | 0〜82 | 0〜82 | 13〜82 | 13〜82 | 13〜82 |
| 標準フック | 300t | 300t | 300t | ||||||||||||
| フック質量 | 3400kg | 3400kg | 3400kg | ||||||||||||
| 標準巻掛本数 | 17 | 17 | 14 | 11 | |||||||||||

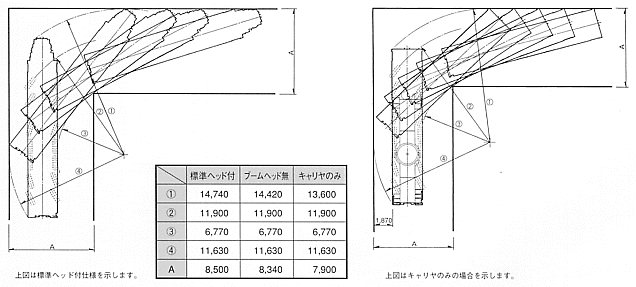

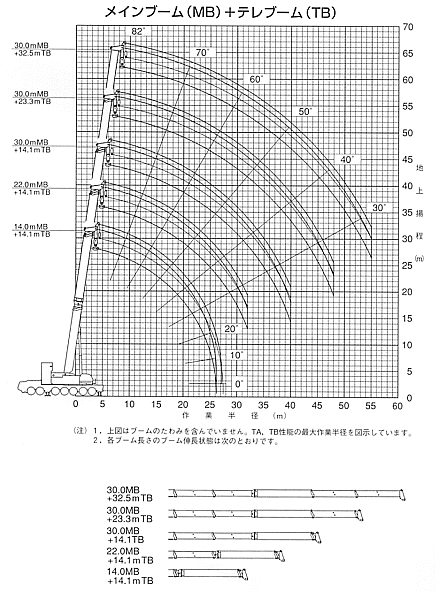

| ﾃﾚﾌﾞｰﾑ（TB）定格総荷重表 TA性能（ｶｳﾝﾀｰｳｴｲﾄ１９５ｔ） 単位：ｔ | |||||||||
| ﾒｲﾝﾌﾞｰﾑ（MB）＋ﾌｨｯｸｽﾌﾞｰﾑ（FB） | |||||||||
| MB 長さ(m) | 14.0 | 18.0 | 22.0 | 26.0 | 30.0 | 30.0 | 30.0 | 30.0 | 30.0 |
| TB 長さ(m) | 14.1 | 14.1 | 14.1 | 14.1 | 14.1 | 18.7 | 23.3 | 27.9 | 32.5 |
| 合計長さ(m) | 28.1 | 32.1 | 36.1 | 40.1 | 44.1 | 48.7 | 53.3 | 57.9 | 62.5 |
| 作業半径(m) | |||||||||
| 5.0 | 160.0 | . | . | . | . | . | . | . | . |
| 6.0 | 160.0 | 160.0 | 160.0 | . | . | . | . | . | . |
| 7.0 | 160.0 | 160.0 | 160.0 | 130.0 | . | . | . | . | . |
| 8.0 | 160.0 | 160.0 | 160.0 | 130.0 | 130.0 | . | . | . | . |
| 9.0 | 160.0 | 160.0 | 160.0 | 130.0 | 130.0 | 113.0 | . | . | . |
| 10.0 | 160.0 | 160.0 | 160.0 | 130.0 | 130.0 | 113.0 | 113.0 | . | . |
| 11.0 | 160.0 | 159.0 | 154.0 | 130.0 | 130.0 | 113.0 | 113.0 | 80.0 | . |
| 12.0 | 153.0 | 147.0 | 142.0 | 130.0 | 130.0 | 113.0 | 113.0 | 80.0 | 80.0 |
| 14.0 | 130.0 | 127.0 | 123.0 | 120.0 | 118.0 | 113.0 | 112.0 | 80.0 | 80.0 |
| 16.0 | 111.0 | 109.0 | 107.0 | 105.0 | 103.0 | 102.0 | 98.8 | 80.0 | 80.0 |
| 18.0 | 96.9 | 94.4 | 92.4 | 92.2 | 91.0 | 90.9 | 88.1 | 80.0 | 77.3 |
| 20.0 | 84.5 | 81.8 | 79.7 | 79.5 | 79.0 | 80.6 | 79.1 | 74.3 | 69.5 |
| 22.0 | 74.2 | 71.5 | 69.4 | 69.2 | 68.7 | 70.2 | 71.2 | 67.2 | 63.0 |
| 24.0 | 62.2 | 63.0 | 60.9 | 60.6 | 60.1 | 61.7 | 62.7 | 61.2 | 57.4 |
| 26.0 | . | 55.9 | 53.7 | 53.4 | 52.9 | 54.5 | 55.5 | 55.9 | 52.6 |
| 28.0 | . | 45.8 | 47.2 | 46.8 | 46.3 | 47.9 | 49.1 | 51.4 | 48.4 |
| 30.0 | . | . | 41.5 | 41.0 | 40.5 | 42.1 | 43.2 | 45.5 | 44.7 |
| 32.0 | . | . | 33.5 | 36.0 | 35.5 | 37.1 | 38.2 | 40.4 | 41.4 |
| 34.0 | . | . | . | 31.8 | 31.2 | 32.7 | 33.8 | 36.0 | 37.4 |
| 36.0 | . | . | . | 25.1 | 27.4 | 28.9 | 30.0 | 32.2 | 33.5 |
| 38.0 | . | . | . | . | 24.1 | 25.6 | 26.6 | 28.8 | 30.1 |
| 40.0 | . | . | . | . | 18.6 | 22.6 | 23.7 | 25.7 | 27.1 |
| 42.0 | . | . | . | . | . | 20.0 | 21.0 | 23.0 | 24.4 |
| 44.0 | . | . | . | . | . | 16.3 | 18.6 | 20.6 | 21.9 |
| 46.0 | . | . | . | . | . | . | 16.5 | 18.4 | 19.7 |
| 48.0 | . | . | . | . | . | . | 14.1 | 16.4 | 17.7 |
| 50.0 | . | . | . | . | . | . | . | 14.6 | 15.9 |
| 55.0 | . | . | . | . | . | . | . | . | 12.0 |
| 角度 | 0〜82 | 0〜82 | 11〜82 | 10〜82 | 10〜82 | 15〜82 | 18〜82 | 15〜82 | 17〜82 |
| 標準フック | 300t | 150t | |||||||
| フック質量 | 3400ｋｇ | 2400ｋｇ | |||||||
| 標準巻掛本数 | 16 | 13 | 11 | 7 | |||||

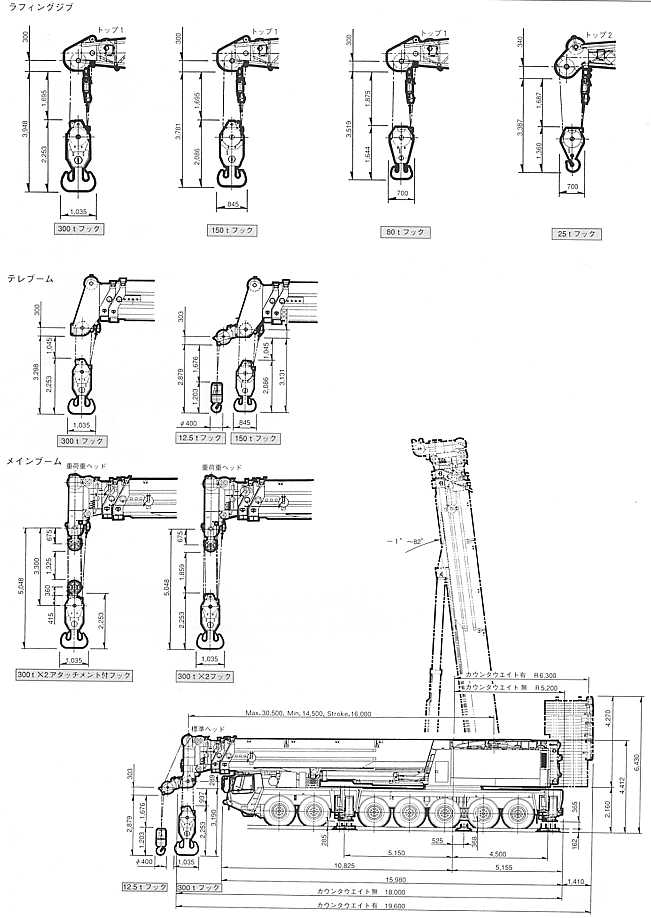

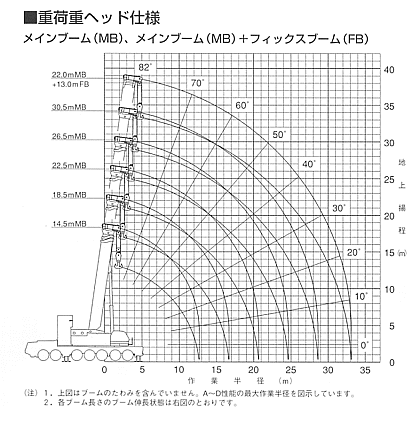

| 重荷重ヘッド定格総荷重表 A性能（ｶｳﾝﾀｰｳｴｲﾄ１９５ｔ） 単位：ｔ | ||||||||
| ﾒｲﾝﾌﾞｰﾑ（MB）、ﾒｲﾝﾌﾞｰﾑ（MB）＋ﾌｨｯｸｽﾌﾞｰﾑ（FB） | ||||||||
| MB長さ(m) | 14.5 | 18.5 | 22.5 | 26.5 | 30.5 | 14.0 | 18.0 | 22.0 |
| FB長さ(m) | - | - | - | - | - | 13.0 | 13.0 | 13.0 |
| 合計長さ(m) | 14.5 | 18.5 | 22.5 | 26.5 | 30.5 | 27.0 | 31.0 | 35.0 |
| 作業半径(m) | ||||||||
| 3.0 | 550.0 | . | . | . | . | . | . | . |
| 3.5 | 430.0 | 330.0 | 330.0 | . | . | . | . | . |
| 4.0 | 388.0 | 330.0 | 330.0 | . | . | . | . | . |
| 4.5 | 361.0 | 330.0 | 330.0 | . | . | . | . | . |
| 5.0 | 337.0 | 327.0 | 318.0 | 250.0 | . | 200.0 | . | . |
| 6.0 | 310.0 | 305.0 | 305.0 | 250.0 | 250.0 | 200.0 | 200.0 | . |
| 7.0 | 274.0 | 265.0 | 265.0 | 246.0 | 242.0 | 200.0 | 200.0 | 200.0 |
| 8.0 | 240.0 | 233.0 | 230.0 | 222.0 | 218.0 | 200.0 | 200.0 | 200.0 |
| 9.0 | 216.0 | 212.0 | 205.0 | 202.0 | 199.0 | 195.0 | 198.0 | 193.0 |
| 10.0 | 194.0 | 194.0 | 188.0 | 186.0 | 182.0 | 178.0 | 182.0 | 177.0 |
| 11.0 | 171.0 | 177.0 | 174.0 | 171.0 | 168.0 | 163.0 | 168.0 | 163.0 |
| 12.0 | 143.0 | 161.0 | 160.0 | 159.0 | 156.0 | 150.0 | 155.0 | 151.0 |
| 14.0 | . | 135.0 | 135.0 | 136.0 | 136.0 | 130.0 | 135.0 | 131.0 |
| 16.0 | . | 99.5 | 116.0 | 117.0 | 118.0 | 114.0 | 118.0 | 116.0 |
| 18.0 | . | . | 99.7 | 102.0 | 103.0 | 102.0 | 103.0 | 101.0 |
| 20.0 | . | . | 72.5 | 89.9 | 90.5 | 92.0 | 91.1 | 89.4 |
| 22.0 | . | . | . | 77.9 | 80.2 | 81.7 | 81.2 | 79.4 |
| 24.0 | . | . | . | 56.3 | 71.7 | 63.6 | 72.8 | 71.1 |
| 26.0 | . | . | . | . | 62.6 | . | 63.2 | 64.0 |
| 28.0 | . | . | . | . | 45.1 | . | 48.4 | 58.0 |
| 30.0 | . | . | . | . | . | . | . | 49.5 |
| 32.0 | . | . | . | . | . | . | . | 37.2 |
| 角度 | 0〜78 | 0〜81 | 0〜82 | 0〜82 | 0〜82 | 0〜80 | 0〜82 | 0〜82 |
| 標準フック | 300t×2 アタッチメント付 |
300t×2 | 300t×2 | |||||
| フック質量 | 3700kg ×2 | 3400kg×2 | 3400kg×2 | |||||
| 標準巻掛本数 | 30×2 | 16×2 | 12×2 | 10×2 | ||||
三重、明和クレーン(有)の移動式クレーン・ポンプ車・レッカー車 i‐ｍｏｄｅ版有り / 160tｵ-ﾙﾃﾚｰﾝｸﾚｰﾝ AR‐5500M
550ｔｵｰﾙﾃﾚｰﾝｸﾚｰﾝ ＴＡＤＡＮＯ AR‐5500M
作業半径とは吊荷の重心からクレーンの旋回中心までの水平距離をいいます。（アウトリガーまでの距離ではない!!）
